DIGITAL WIRELESS COMMUNICATION TRAINER

oft-logo

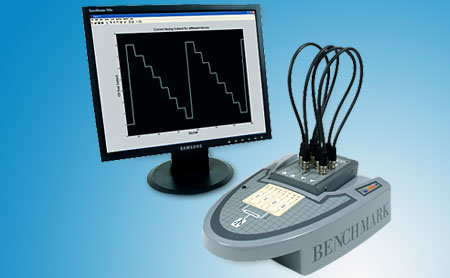

The Ultimate Digital Wireless Communication Training System - SDR Platform

The Benchmark WiCOMM0-T the ultimate Digital Wireless Communication Training Platform – is the actual implementation of modern digital communication systems with direct interface to MATLAB through the Hi-Speed USB port of a PC.


oft-logo

The WiCOMM-T is based on the curriculum developed in the Intel Wireless Laboratory of IIT Madras

The WiCOMM-T provides maximum flexibility in learning complete digital communication system concepts, which includes digital modulation techniques, Baseband Equalization, Filtering concepts, and the basics of CDMA, GSM etc. MATLAB codes of all suggested experiment topics are available to users as reference. A MATLAB interface to the Platform also allows users to try out other topics on their own.

Features
Typical implementation of modern communication systems Interface with MATLAB
  • Gives the ability to generate required signal and pass it through the transmitter and receiver providing a real life wireless digital communication system
Comprehensive manual – describes wide range of experiments Loop back options at Baseband and at IF
Experiment Topics

Baseband Digital Communication Link (Only Baseband)
  • Raised Cosine spectrum pulses
  • Timing acquisition algorithm
  • Clock tracking & slip control
  • Matched filtering, Root raised cosine spectrum pulses – performance in noise
oft-logo

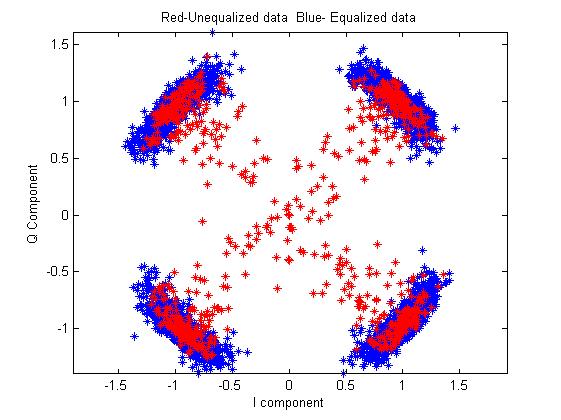

Adaptive Equalization Techniques
  • Adaptive linear equaliser
  • Adaptive decision feedback equaliser
  • MSE convergence
  • Decision aided channel tracking
oft-logo
Quadrature Modulation Schemes
  • QPSK (Phase and frequency offset)
  • Constellation plots
  • Carrier recovery algorithm
  • Carrier and Clock Tracking
oft-logo

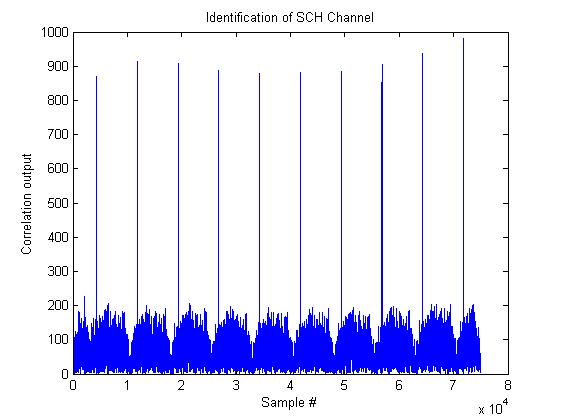

GSM
  • GMSK modulation and demodulation
  • Viterbi equaliser for GSM
oft-logo

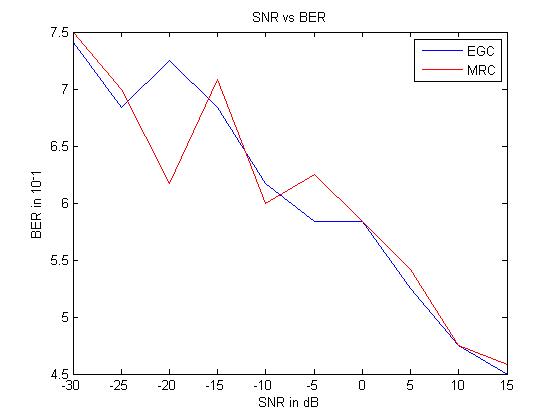

Basics of DS-CDMA
  • Orthogonal and non-orthogonal spreading codes
  • Multipath channel estimation for RAKE receiver
  • SER performance of RAKE combiner
oft-logo

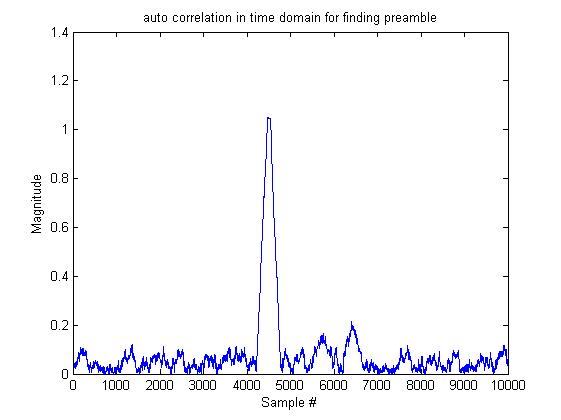

Basics of OFDM
  • Timing and Frequency synchronisation
  • Channel estimation using FFT processing
  • Channel estimation using modified LS
  • Mean Square Error Performance
oft-logo
Projects (Need additional hardware / RF block and MATLAB codes development by user) A simple Software Defined Radio (SDR)
  • Transmission and reception at various frequencies
Any Arbitrary Modulation Scheme
  • 8PSK, QAM (16, 64 etc), EDGE, WCDMA*, WiFi, WiMAX*
  • Compare at base-band and IF loop-back
FM Radio Reception Spectrum Analysis at the IF frequencies (needs spectrum analyzer) Reception of local GSM broadcast channel Channel Coder / Decoder
  • Turbo decoder
  • LDPC coder / decoder
Access WiCOMM-T platform remotely through TCP/IP via internet V.32 Modem Frequency Hopping Spread Spectrum (FHSS) Discrete Multi Tone (DMT) modem
Ordering Information
WiCOMM-T Comprising
Qty
WiCOMM-T BU: Base Unit
1
IFX70MHz: 70MHz IF Module
1
WiCOMM-T PS: Power Supply
1
WiCOMM-T SW: Experiment Software
1
WiCOMM-T MAN: Manual
1
PROJECTS System Requirements
1


Optional
Qty
RFX2.4GHz: 2.4GHz Module Tx & Rx - 2 nos (Two WiCOMM-Ts required)
2
